Wall series fan heater

Luxurious Appearance

High Efficiency

Stability & Reliability

Smart Control

Comfortable & Health



Anion Function

Anion generator in the wall series anion fan heater brings plenty of anion element,which has the function of air freshening, sterilization and health care and freshen air in your room and make one healthier as he or she enjoys the pleasure of new machine.

Intelligent Functions

Intelligent functions involving 3 parts: Intelligent temperature control; Intelligent velocity control; Intelligent anion generation control.

Exquiste Appearance

It applied with Latest appearance design, exquisite appearance and multiple functions.

LED Screen Panel

It is applied LED screen, which provide clear content of operating mode.

Luxurious Appearance

Fresh digital-controlled curve panel, whole metal aluminum alloy outer cover, top in and bottom swing wind out design;

High Efficiency

High heat conversion, Safe electricity-free PTC heater, Prompt temperature rise; Low noise and high performance air conditioner motor.

Stability & Reliability

Triplicate Security Protection: Thermal protector, Varistor and fuse;

Automatic postpone safety protection when power off;

Smart Control

Smart and accurate operation through red ray remote control and LCD touch switch;

Remote control makes distance control come true.

Auto switch of heat, air volume and anion fresh functions;

Easy operation;

Comfortable & Health

Healthy anion cleaner, purifying air and sterilizing at any time;

Suitable for families, hospitals and offices etc. to get warm air;

Wall series fan heater

Anion fresh function Cylindrical aluminum alloy wire-drawing body aluminum  alloy wheel Uncharged PTC heater Triple protection Remote control Key switch Customized power supply

Wall series fan heater

Wall series fan heater Tech Specs:

Model

 Dimension
 (mm)

Voltage
(v~)

Frequency
(Hz)

Motor Power
(w)

PTC Power
(kw)

 Air velocity
(m/s)

Air volume
(m3/h)

Temperature rise
(k)

Noise
(dB)

Net weight
(kg)









  H    L

H

L

H

M

L

H

M

L







RM-G35-D/Y

825x220x240

220

50

  60   20

3.5

1.8

4

3

2

460

340

220

40-60

<36

10.5

▲ Installation

RM-G35-D/Y install

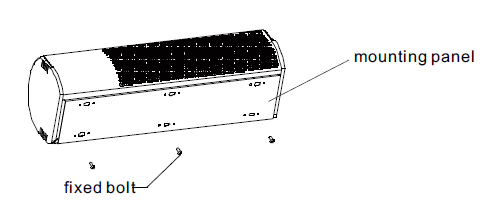

1Take off mounting panel: loose the fasten bolt on the mounting panel, then take it off

RM-G35-D/Y install

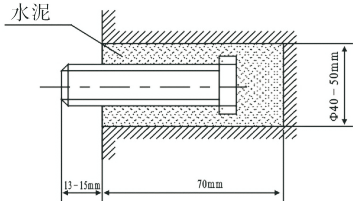

2、Fix the bolt in the right place and use mounting panel to make sure it and stuff with concrete to fix it.


RM-G35-D/Y install

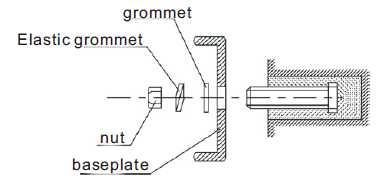

3、Fasten by using grommet and nut after concretion of concrete and lock with mounting panel and check if it is fastened.

RM-G35-D/Y install

4、Hang the body of product against the baseplate and check to make sure it is safe and tightly fastened.



▲ Operation Intrruction

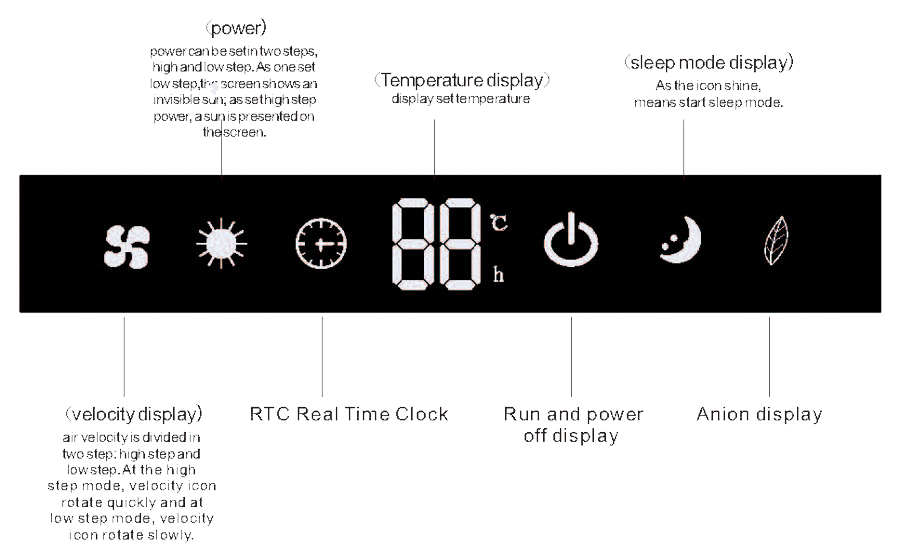

Wall series air curtain screen display

wall series air curtain screen display

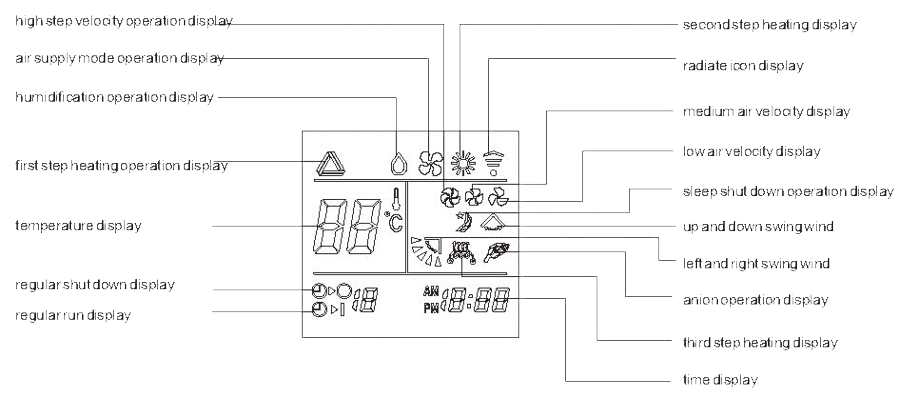

Remote control screen display

Remote control screen display

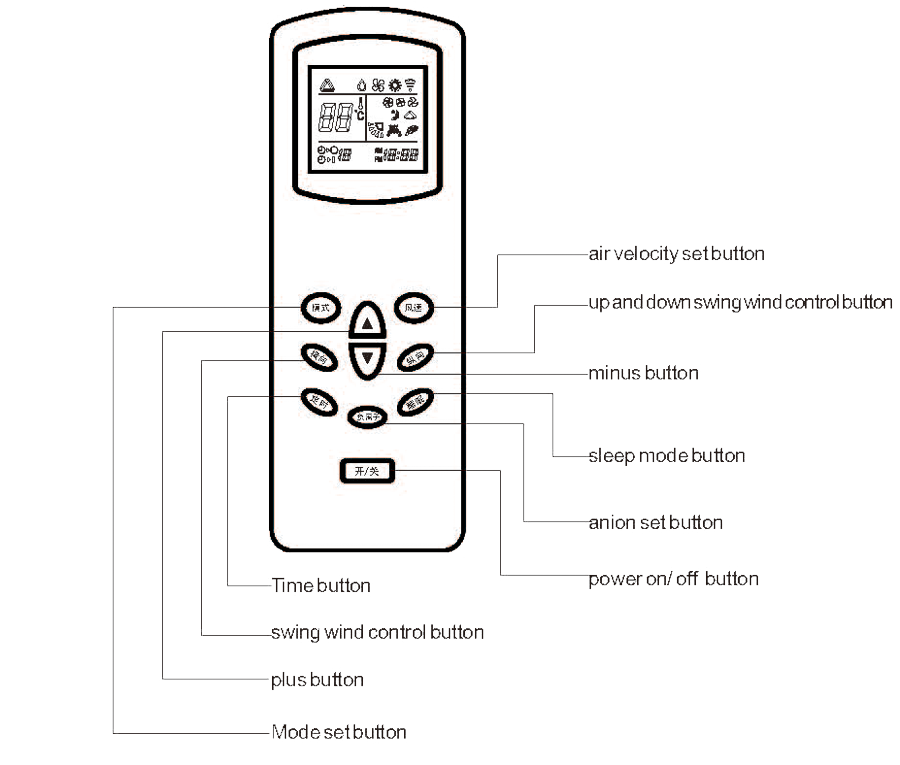

Buttons on the remote control plate

Buttons on the remote control plate

▲ 操作指南

冷暖:
1.1 按開/關鍵啟動風幕機(此時風幕機默認以冷風高速工作)
1.2 按開關鍵可實現熱風、冷風和風速切換規律為:啟動(冷風高速)-冷風低速-熱風高速-熱風低速-關機
2 發射器操作
2.1 按開關鍵啟動風幕機
2.2 連續按冷鍵或熱鍵可實現冷風高低速切換或熱風高低速切換

三按鍵接收器系列
1 發射器與接收器操作一致
1.1 按開關鍵啟動風幕機(此時風幕機默認以冷風高速工作)
1.2 連續按冷鍵或熱鍵可實現冷風高低速切換或熱風高低速切換
注: 1、在熱風狀態中連續工作分鐘后按開關鍵關機,風幕機將在冷風狀態下累積工作3分鐘然后自動關機。
         2、請在風幕機額定的電源環境下進行以上操作

3G機型面板開關:左“Ⅰ”為小功率, 低溫度輸出;右“Ⅱ”為大功率,高溫度輸出。
根據使用環境,調整出風口的導風件,以獲得滿意的效果(如圖所示)
